Common Prebuilt Wi-Fi Solutions

We know finding the right Wi-Fi solution for your installation can be a struggle. So to make the process easier, our staff created pre-designed custom Wi-Fi solutions for various types of installations. If you don't find a solution that fits your needs or you need to modify a solution, contact us and one of our technical representatives can assist you with building a customized system that meets your exact needs.

PiFi Wi-Fi Bridge System 1.1

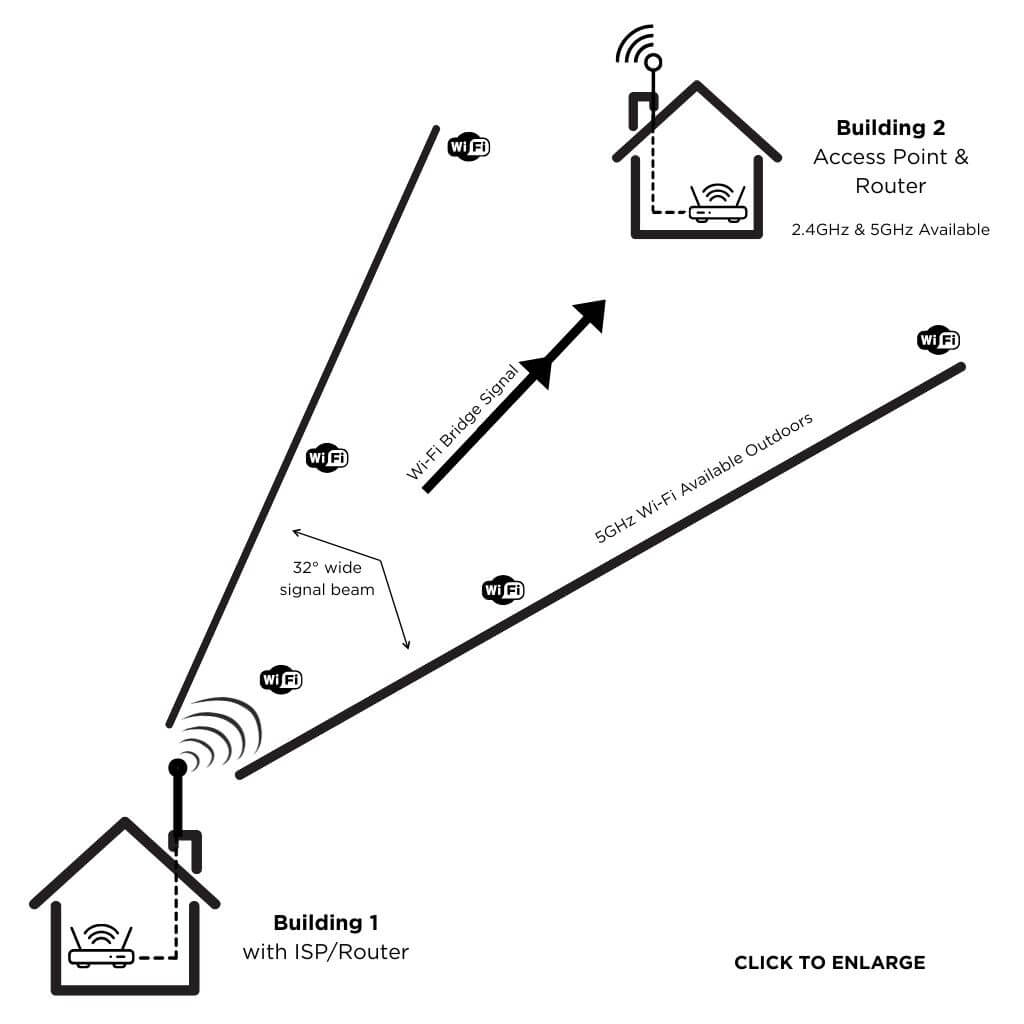

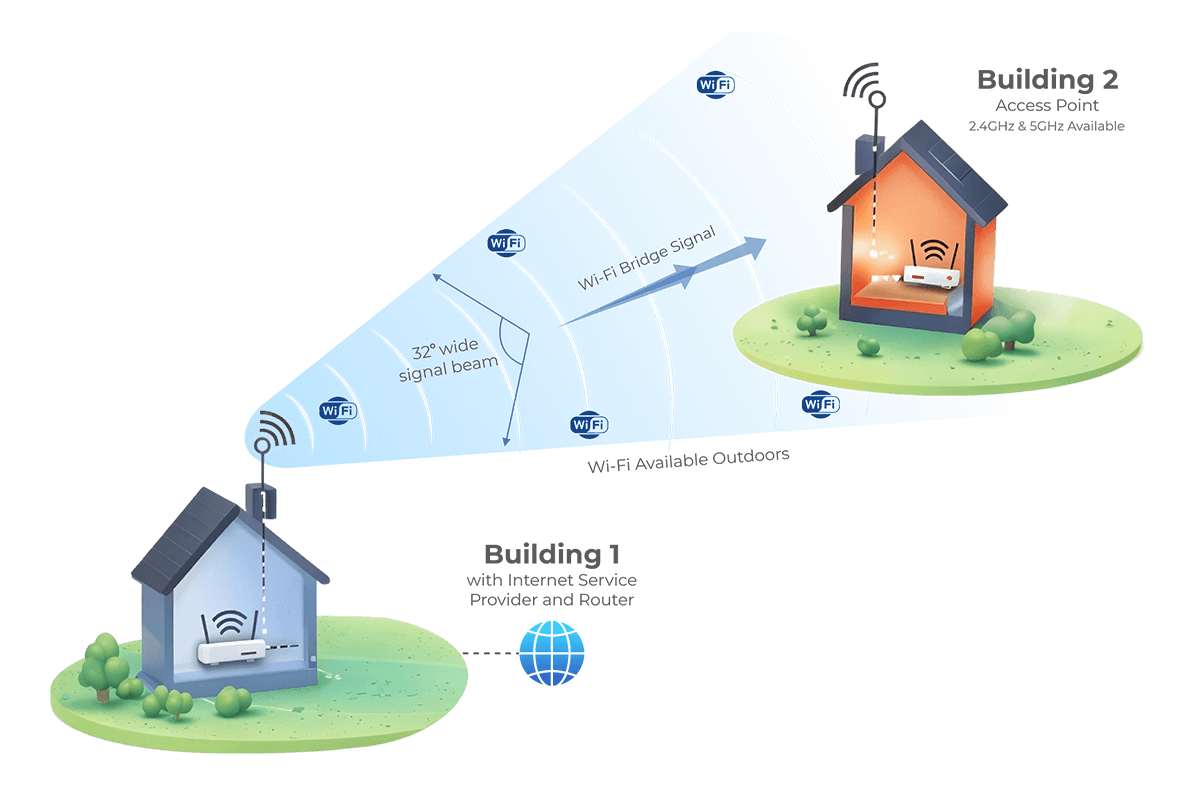

Scenario: Send Wi-Fi from one building to another and have Wi-Fi between the two buildings.

Ideal Distance: 200-1,500 FT

Building 1) The outdoor bridge device is connected to the directional antenna panel via one of the removable antenna ports on the AC 1200 access point. The antenna sends Wi-Fi signal to the client bridge unit located at Building 2.

Building 2) The outdoor client bridge located at building 2 then feeds the indoor router/access point for Internet service.

Outdoor Wi-Fi: 5GHz Wi-Fi signal is available outside along the directional path of the Wi-Fi bridge system within the 32° signal beam width.

SKU: SWF-PF1X

SHOP & CUSTOMIZE THIS SYSTEM

PiFi Wi-Fi Bridge System 1.2

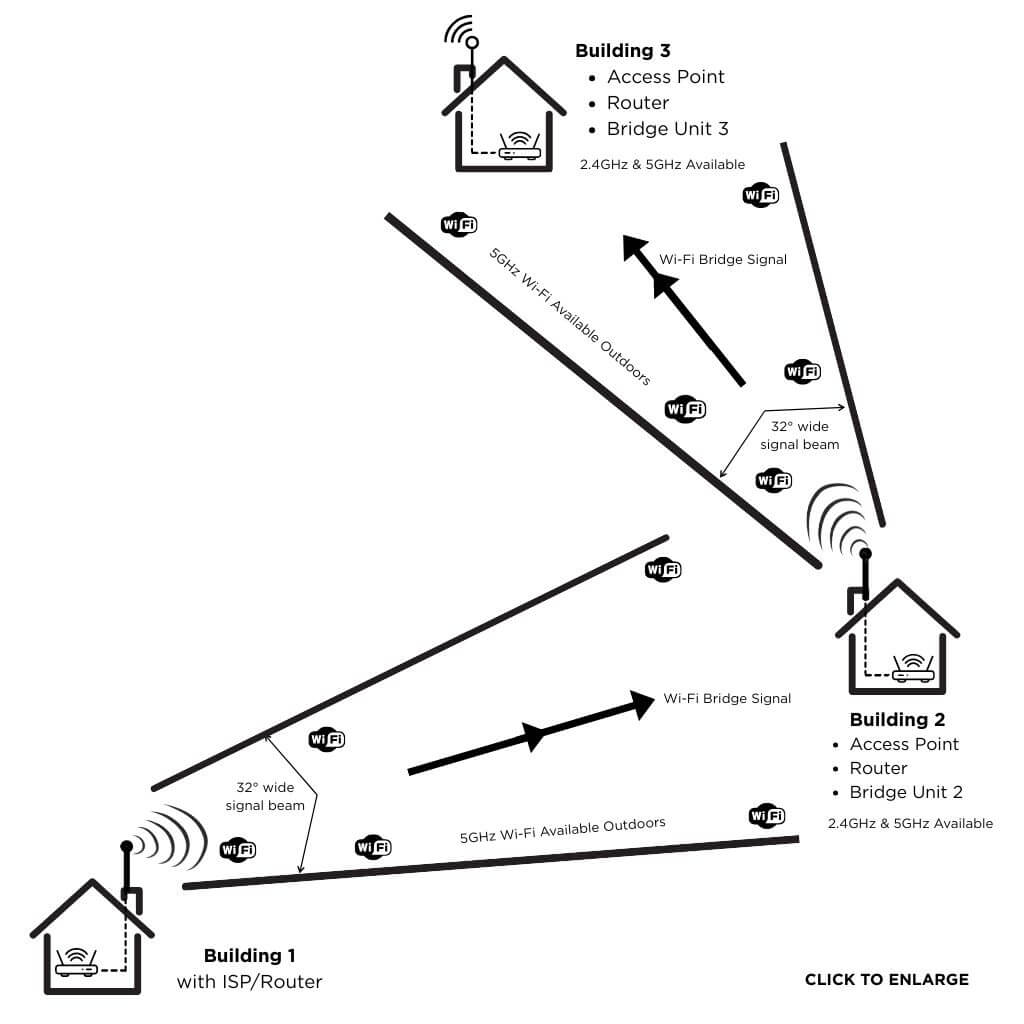

Scenario: Send Wi-Fi between 3 buildings and have Wi-Fi between each building.

Ideal Distance: 200-1,500 FT between each building

Building 1) The outdoor bridge device is connected to the directional antenna panel via one of the removable antenna ports on the AC 1200 access point. The antenna sends Wi-Fi signal to the client bridge unit located at Building 2.

Building 2) The outdoor client bridge located at building 2 then feeds the indoor router/access point for Internet service.

The outdoor bridge device is connected to the directional antenna panel via one of the removable antenna ports on the AC 1200 access point. The antenna sends Wi-Fi signal to the client bridge unit located at Building 2.

Building 3) The outdoor client bridge located at building 2 then feeds the indoor router/access point for Internet service.

Outdoor Wi-Fi: 5GHz Wi-Fi signal is available outside along the directional path of the Wi-Fi bridge system within the 32° signal beam width.

SKU: SWF-PF2X

SHOP & CUSTOMIZE THIS SYSTEM

PiFi Wi-Fi Bridge System 1.3

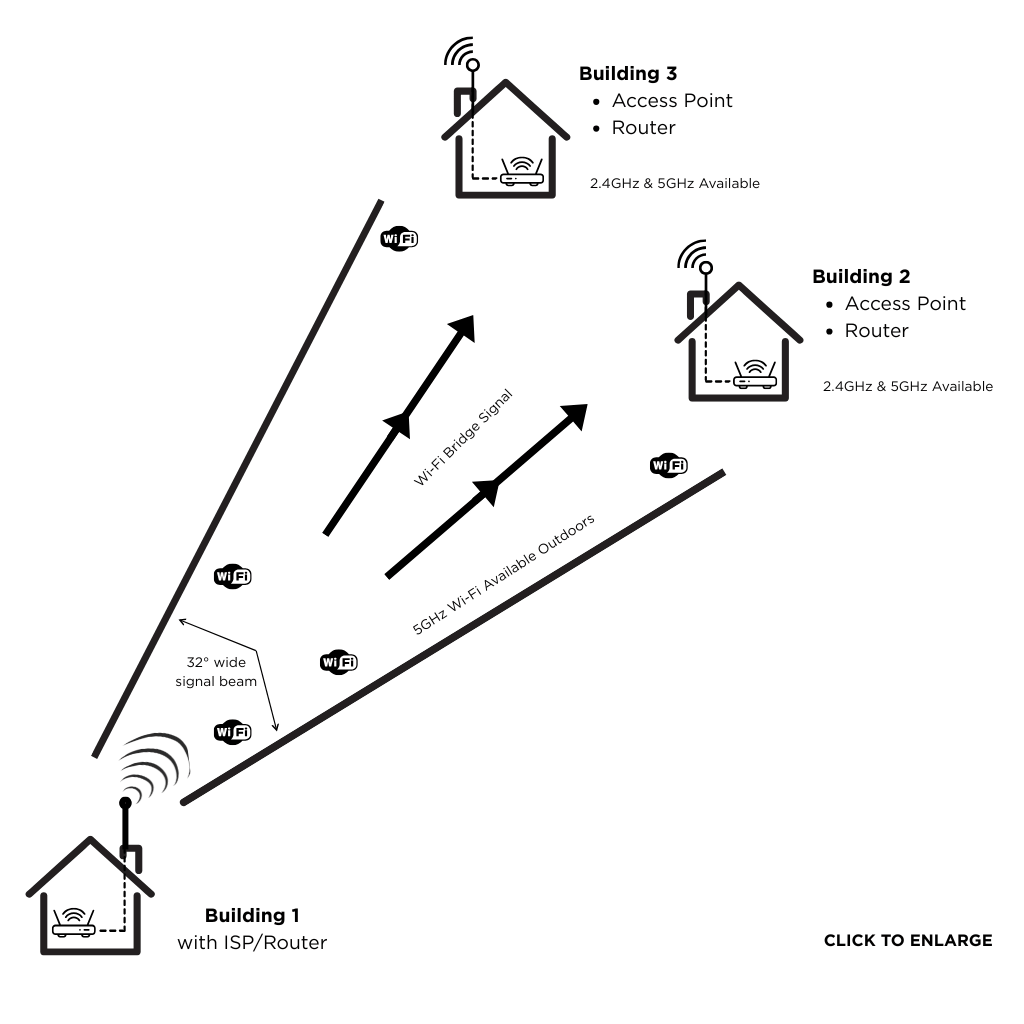

Scenario: Send Wi-Fi from 1 building to 2 different buildings and have Wi-Fi between building 1 and buildings 2 and 3.

Ideal Distance: 200-1,500 FT from building 1 to building 2 and 3.

Building 1) The outdoor bridge device is connected to the directional antenna panel via one of the removable antenna ports on the AC 1200 access point. The antenna sends Wi-Fi signal to the client bridge unit located at Building 2 and building 3.

Building 2) The outdoor client bridge located at building 2 feeds the indoor router/access point for Internet service.

Building 3) The outdoor client bridge located at building 3 feeds the indoor router/access point for Internet service.

Outdoor Wi-Fi: 5GHz Wi-Fi signal is available outside along the directional path of the Wi-Fi bridge system within the 32° signal beam width.

SKU: SWF-PF3X

SHOP & CUSTOMIZE THIS SYSTEM

PiFi Wi-Fi Bridge System 2.2

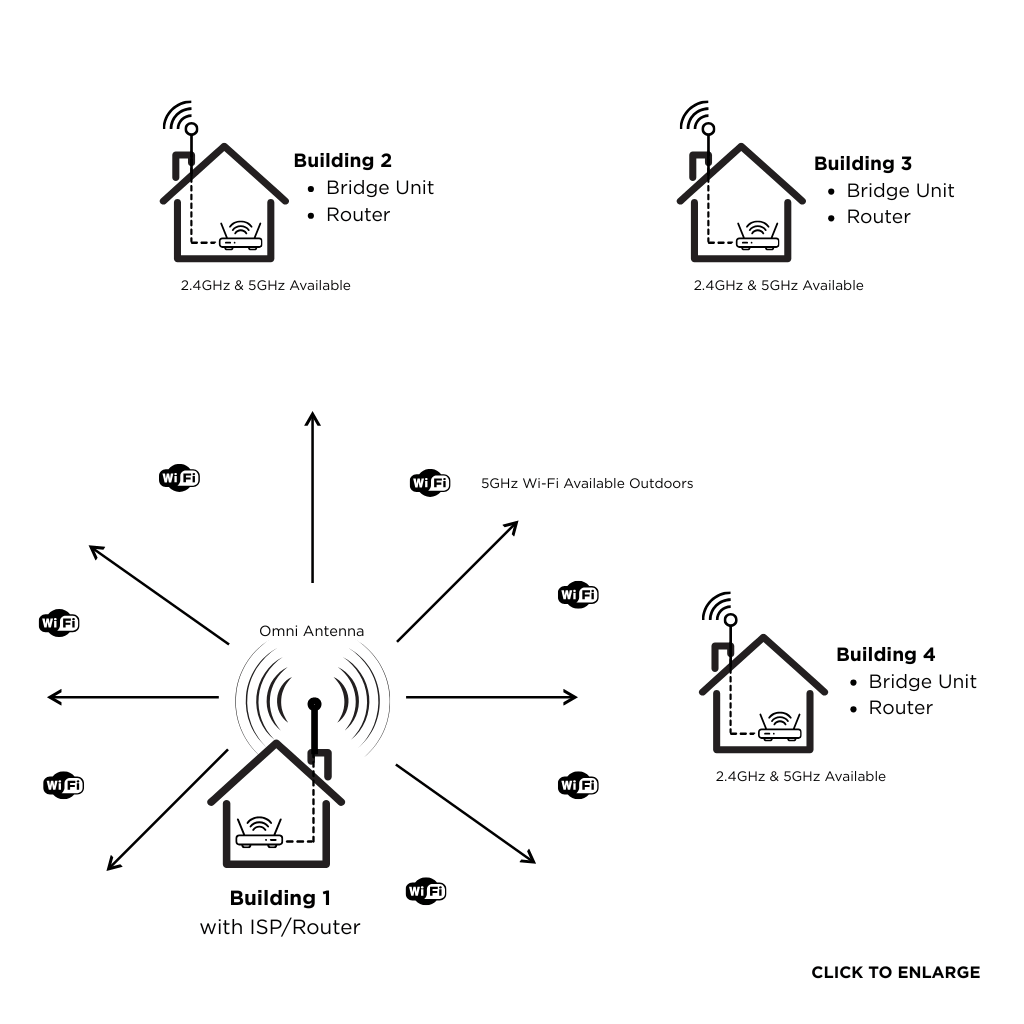

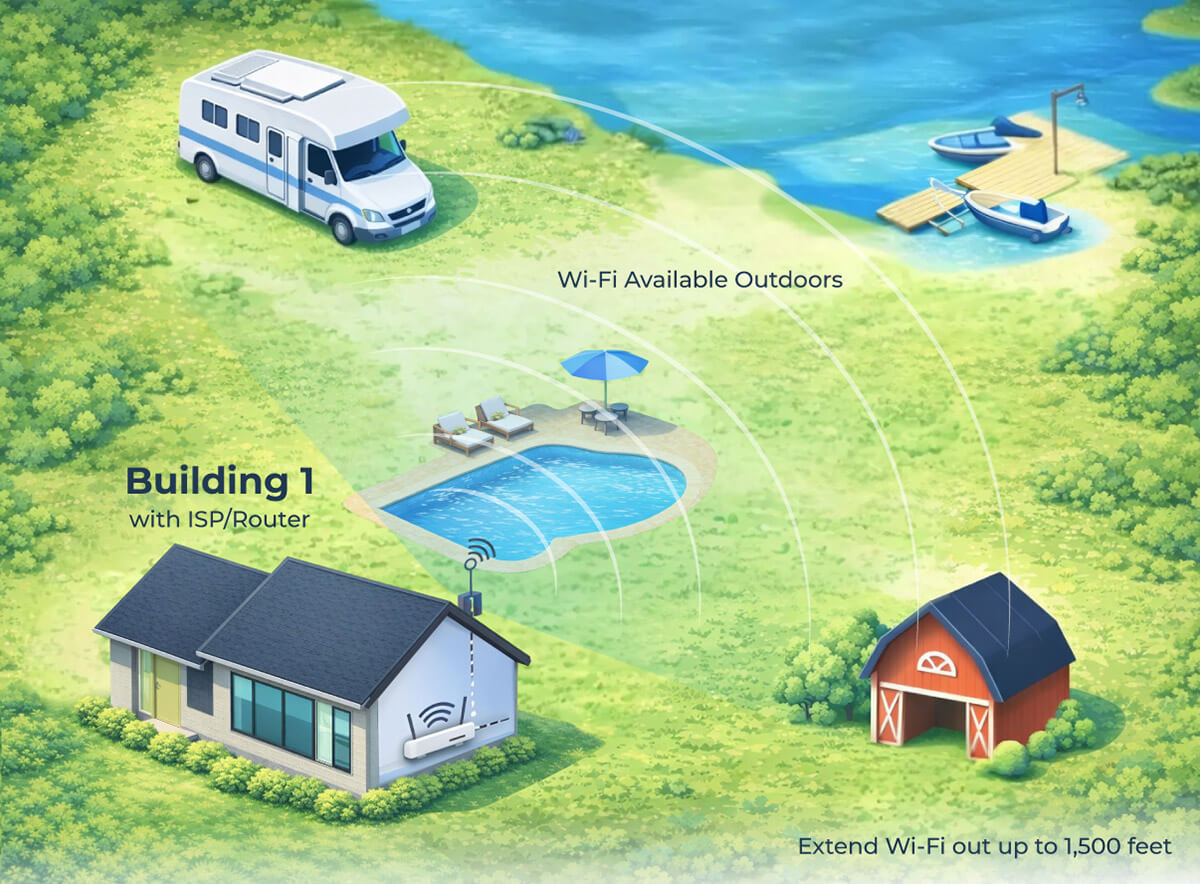

Scenario: Send Wi-Fi from 1 building to different buildings around a property and have Wi-Fi outside around the main building.

Ideal Distance: 200-1,200 FT from building 1 to building 2 and 3.

Building 1) The outdoor access point is connected to a omni-directional antenna which sends signal to the bridge unit at each building.

Building 2-4) The outdoor client bridge located at building 2 feeds the indoor router/access point for Internet service.

Outdoor Wi-Fi: 5GHz Wi-Fi signal is available outside in a 360° radius around the main building.

SKU: SWF-PF4X

SHOP & CUSTOMIZE THIS SYSTEM

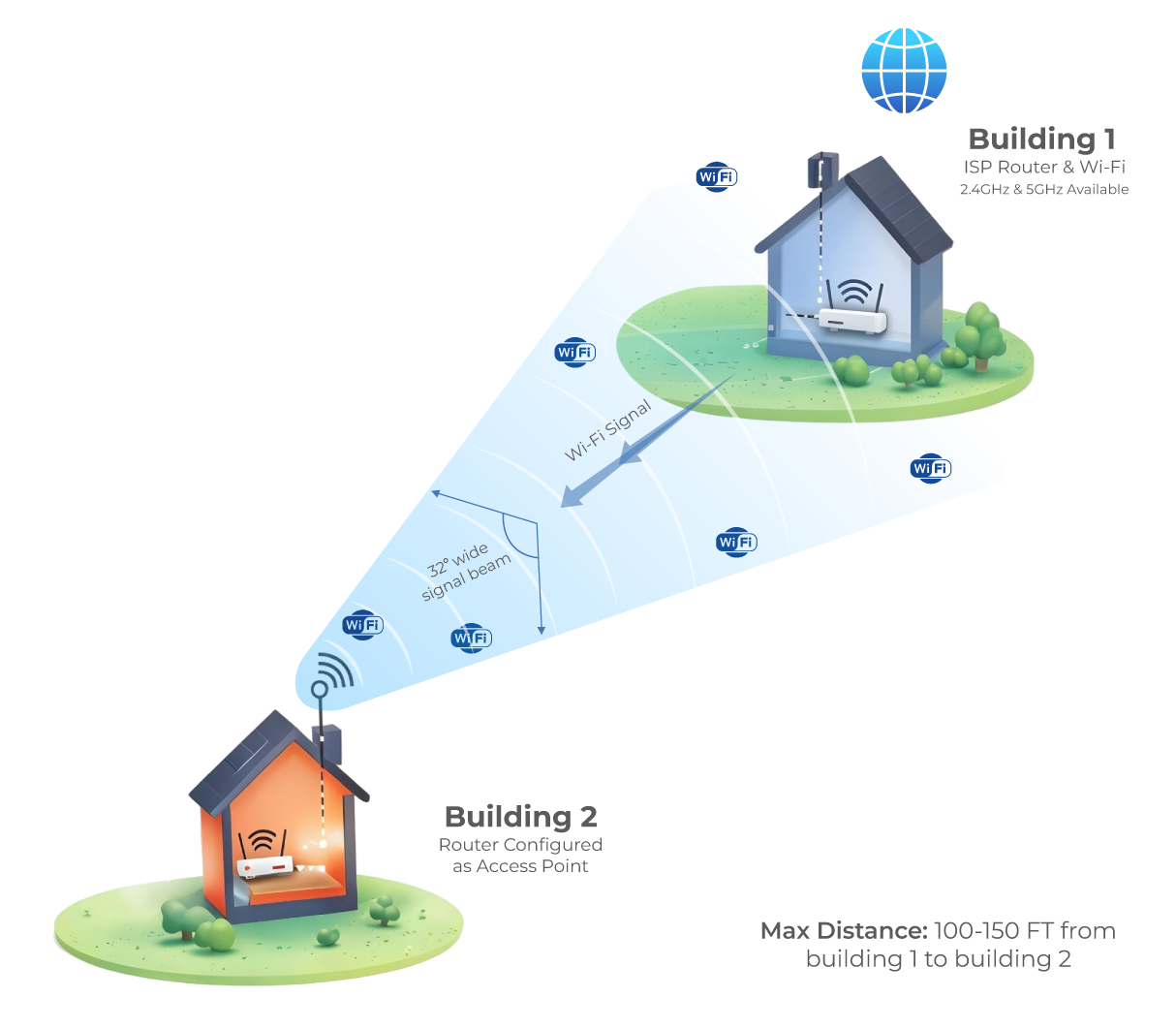

PiFi Wi-Fi Client System 2.2

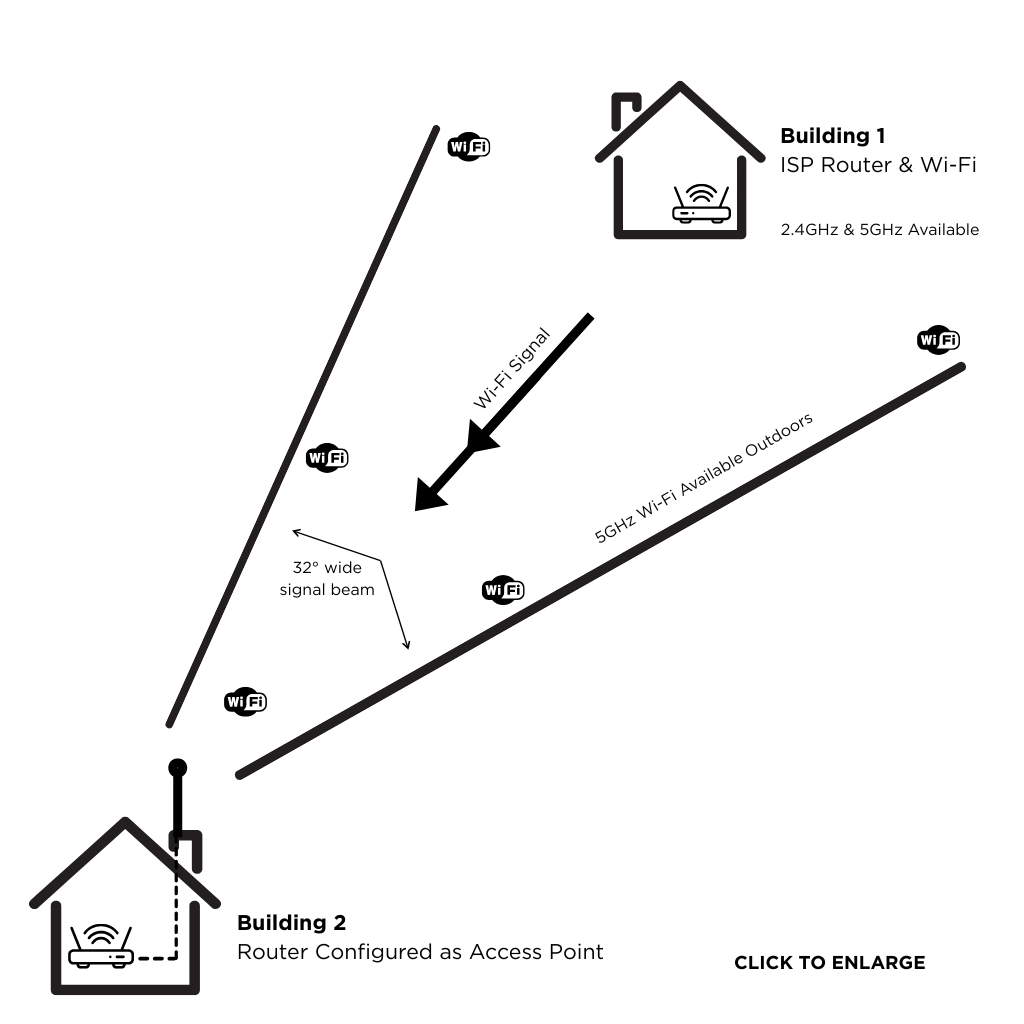

Scenario: Grabbing existing Wi-Fi signal to a second building.

Max Distance: 100-150 FT from building 1 to building 2 and 3.

Building 1) The main internet (ISP) router and Wi-Fi are located at this building.

Building 2) The outdoor client bridge located at building 2 feeds the indoor router/access point for Internet service.

Outdoor Wi-Fi: 5GHz Wi-Fi signal is available outside in a 360° radius around the main building.

SKU: SWF-CS1.1X
