WiFi Extender Panels

Designed and quality tested in USA. Backed by our 30-day 100% money back guarantee.

Dual polarization for the ltimate long range 2.4GHz signal performance. 14.5 dBi and a 32° wide power signal. Very strong and robust antenna, thousands produced and sold from Miami FL.










Gain Ratings

Networking Protocols

Beam Widths

Mounting Location: Outdoors

Ideal for our TP-110 outdoor access point. It has 2 antenna ports now each port will add to your directional performance.

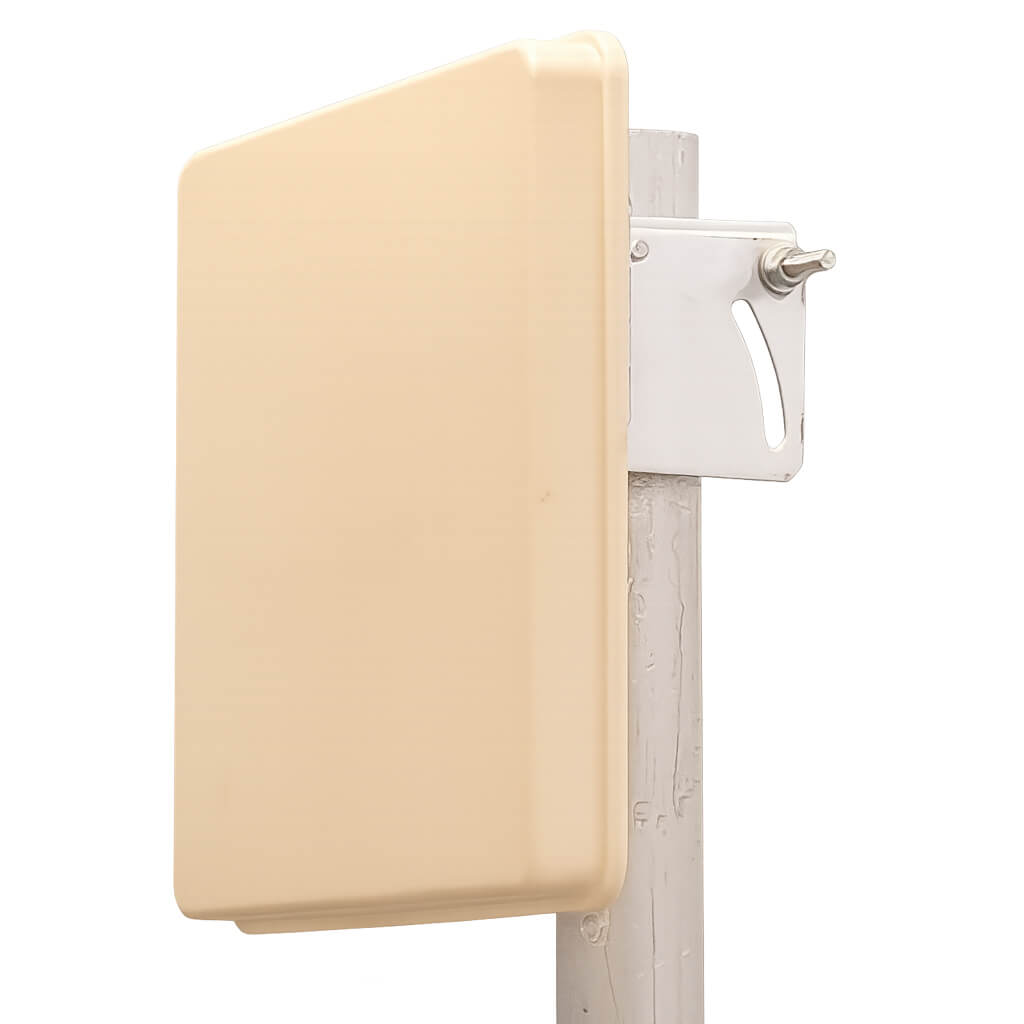

The 14 dBi outdoor panel is ideal for setups requiring long range, high speed and a small physical antenna. Thanks to its small 8"x8"x2" housing, the panel remains relatively out of sight while still performing like its larger counterparts.

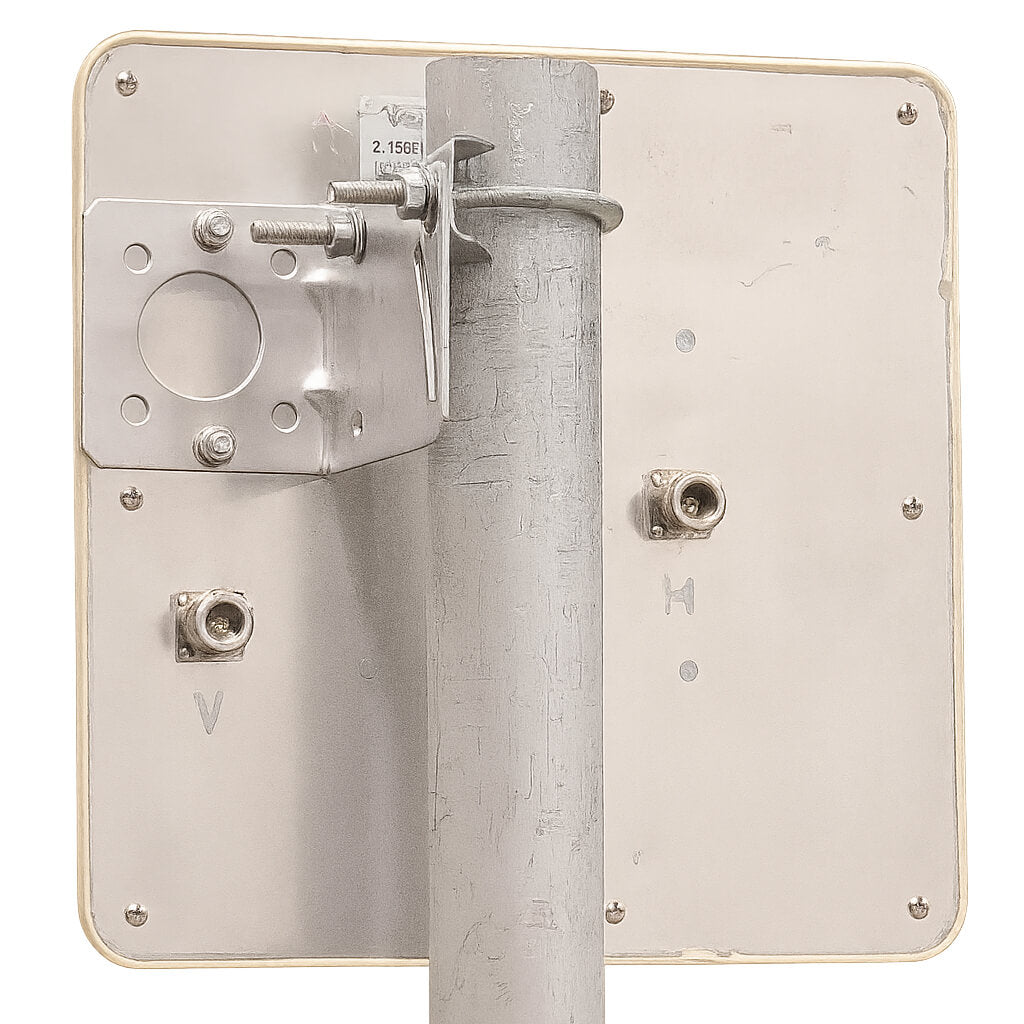

Antenna includes mounting hardware for a pole or mast and has dual built-on N-Female connectors. We suggest using a right-angle N-Female/N-Male adapter to preserve the cable performance and reduce kinking at a critical point in your network.

For 2.4GHz only and on special price closeout! It is 14.5 dBi and a 32° wide power signal. Very strong and robust antenna, thousands produced and sold from Miami FL.



Frequencies

Gain Ratings

Networking Protocols

Beam Widths

Mounting Location

Connector






Frequency: 2.35 to 2.52 GHz covers the 2.4GHz, plus some extended range for other devices and users.





Networking Protocol











Long Range

At 14 dBi it has a maximum range of up to 3 miles. Clear LOS and suitable antenna and devices required

Outdoor Ready

Built tough to withstand years of use outdoors.

High Gain

14dBi guaranteed by our laboratory and test chamber in Miami, FL U.S.A..

High Accuracy

Due to it's high gain, the Panel antenna sends and receives through a narrow signal of just 32 degrees.

Dual Polarizations

The dual polarization version allows for longer range networking with mobile devices which are never properly vertical polarization. Maintains more consistent 2.4 GHz network performance

Cable Ready

All outdoor antennas hav N-Female connectors. Ready for the standard N-Male which comes on most outdoor WiFi cables. This requires 2 cables.
