Directional Wi-Fi Panels Dual Band

Directional Wi-Fi Panels Dual Band

SKU P05
$79.00 - $129.00
$79.00
$79.00 - $129.00
$79.00
Gain: 14 dBi
Mount: Outdoor
Frequency: 2.4 and 5 GHz

WiFi Extender Panels

Designed and quality tested in USA. Backed by our 30-day 100% money back guarantee.

Gain Ratings: 12/14 dBi or 17/19 dBi on 2.4GHz / 5.7GHz bands

Networking Protocols: 802.11b/g/n/a

Beam Widths: 35° or 22° Vertical and Horizontal

Mounting Location: Outdoors, waterproof.

Mast/tube mounting: up to 2" diameter



Dual-Band panel antennas replace the very popular Yagis and work equally as well and better.

The 12/14 dBi (2.4 / 5.7 GHz) outdoor panel is ideal for setups requiring long range, high speed and a small physical antenna. Thanks to its small 8"x8"x2" housing, the panel remains relatively out of sight while still performing like its larger counterparts.

The 17/19 dBi (2.4 / 5.7 GHz) powerhouse long range outdoor panel is ideal for setups requiring extra long range, high speed and a compact antenna. Thanks to its small 12"x12"x2" housing, the panel remains relatively out of sight while still performing like its larger counterparts. This panel provides 2X the forward power compared to our high gain Yagis

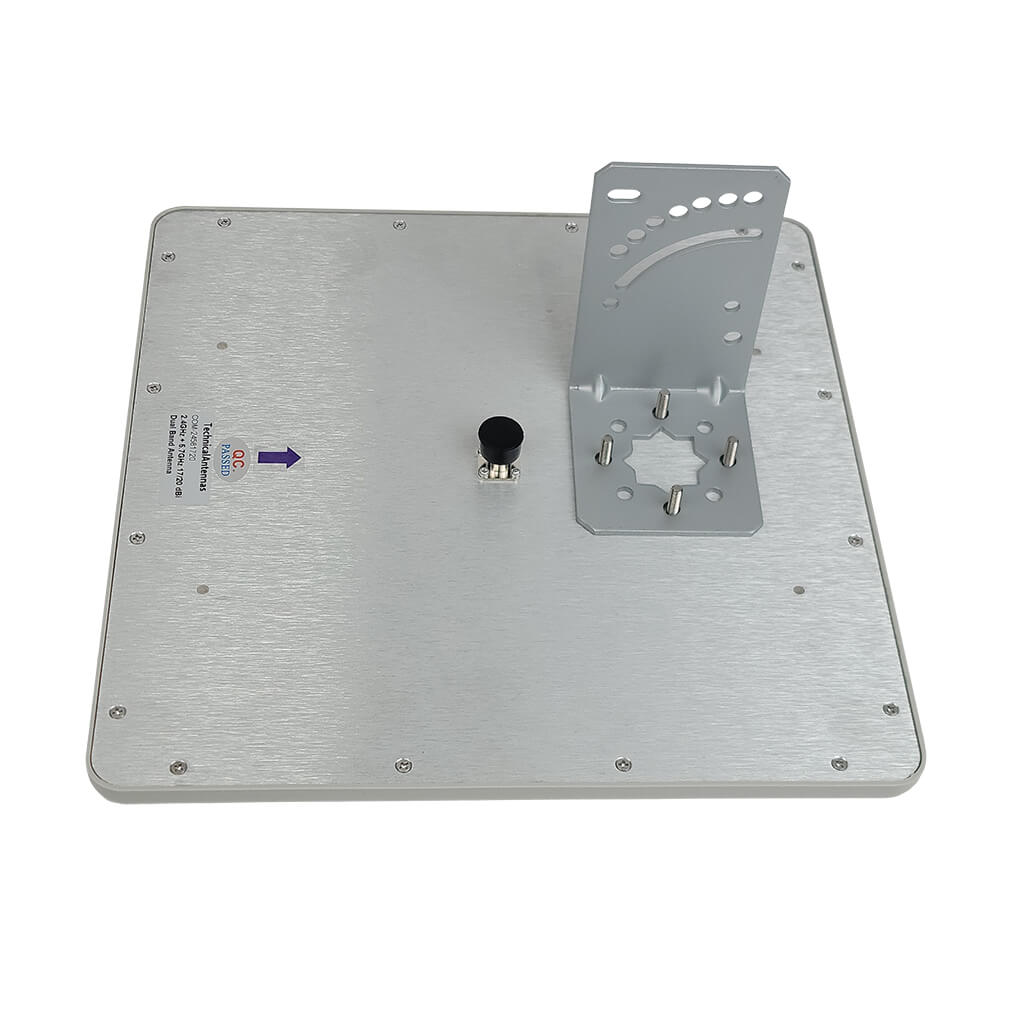

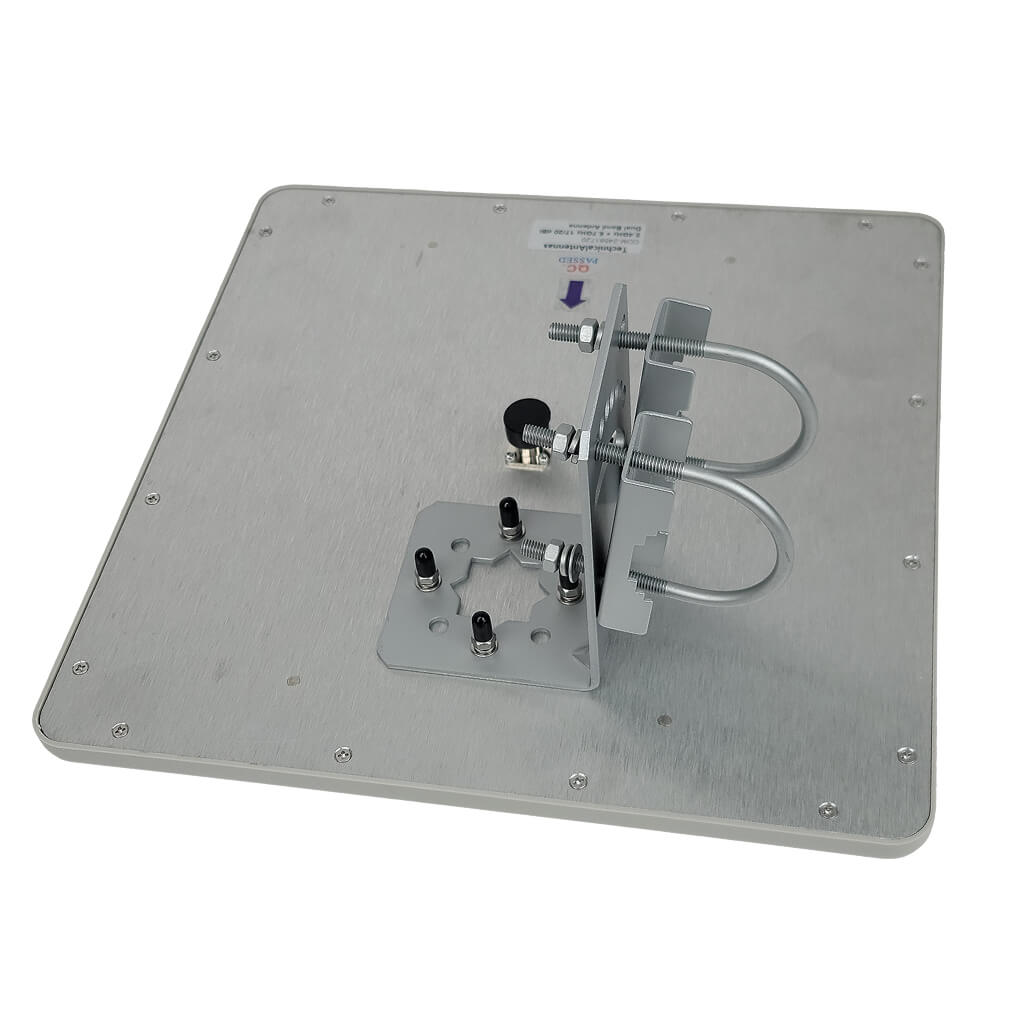

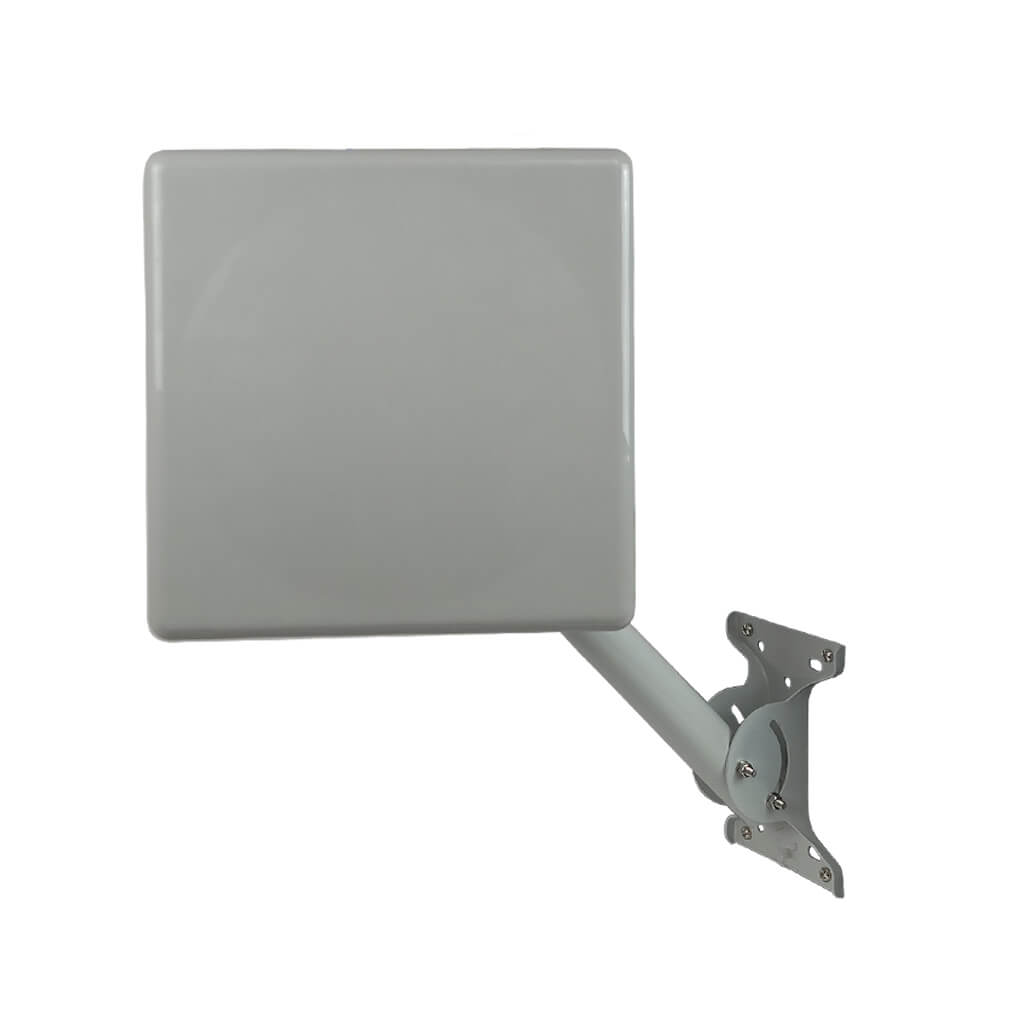

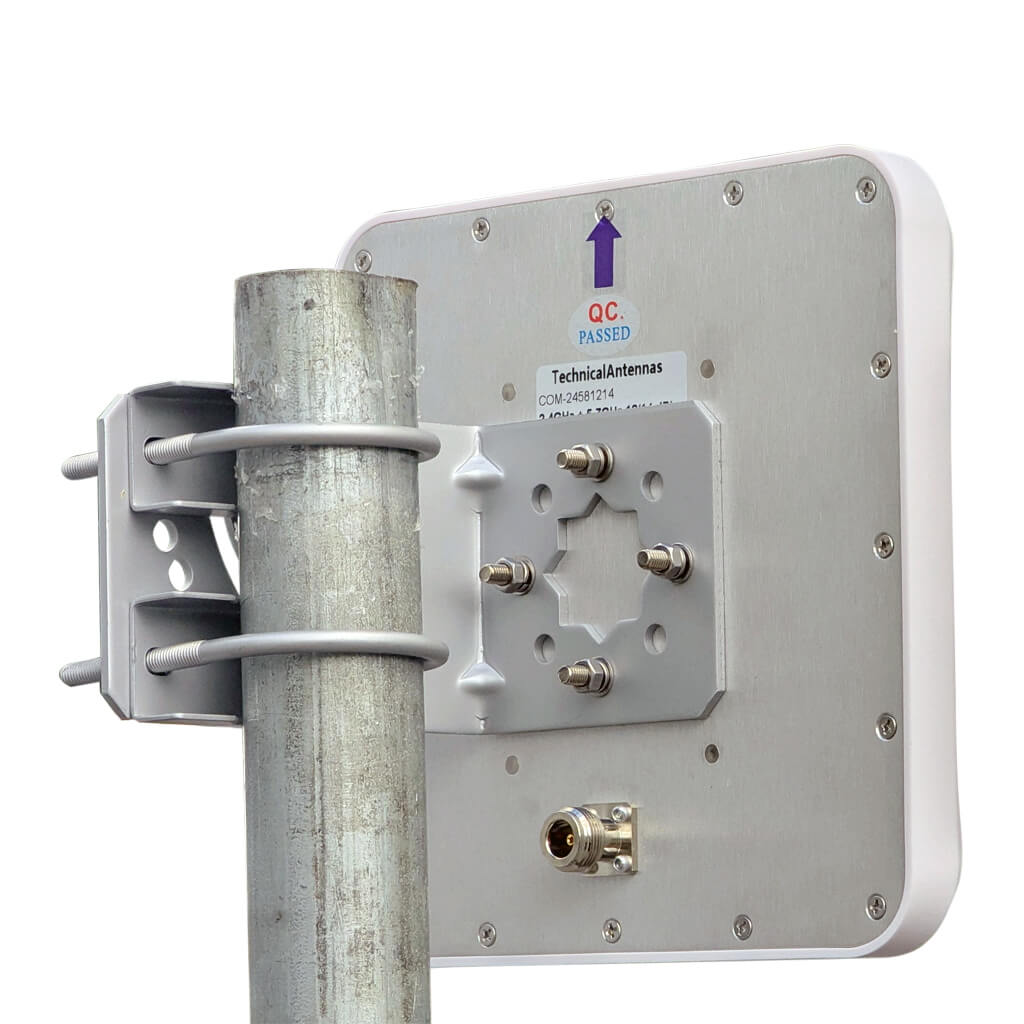

These outdoor antennas include mounting hardware for a pole or mast and have a built-on N-Female connector. We suggest using a right-angle N-Female/N-Male adapter to preserve the cable performance and reduce kinking at a critical point in your network.

For 2.4GHz only and on special price closeout! It is 14.5 dBi and a 32° wide power signal. Very strong and robust antenna, thousands produced and sold from Miami FL.









Networking Protocol











Long Range

At 14 dBi it has a maximum range of up to 3 miles. Clear LOS required.

Outdoor Ready

Built tough to withstand years of use outdoors. (Applicable to indoor/outdoor 14dBi version)

High Gain

14dBi guaranteed by our laboratory and test chamber in Miami, FL U.S.A..

High Accuracy

Due to it's high gain, the Panel antenna sends and receives through a very narrow signal of just 32 degrees.

Dual Band

The dual band version allows for long range networking on the faster 5 GHz frequency as well as on legacy 2.4 GHz networks.

Cable Ready

For outdoor antennas an N-Female connector is ready for the standard N-Male which comes on most outdoor WiFi cables.
