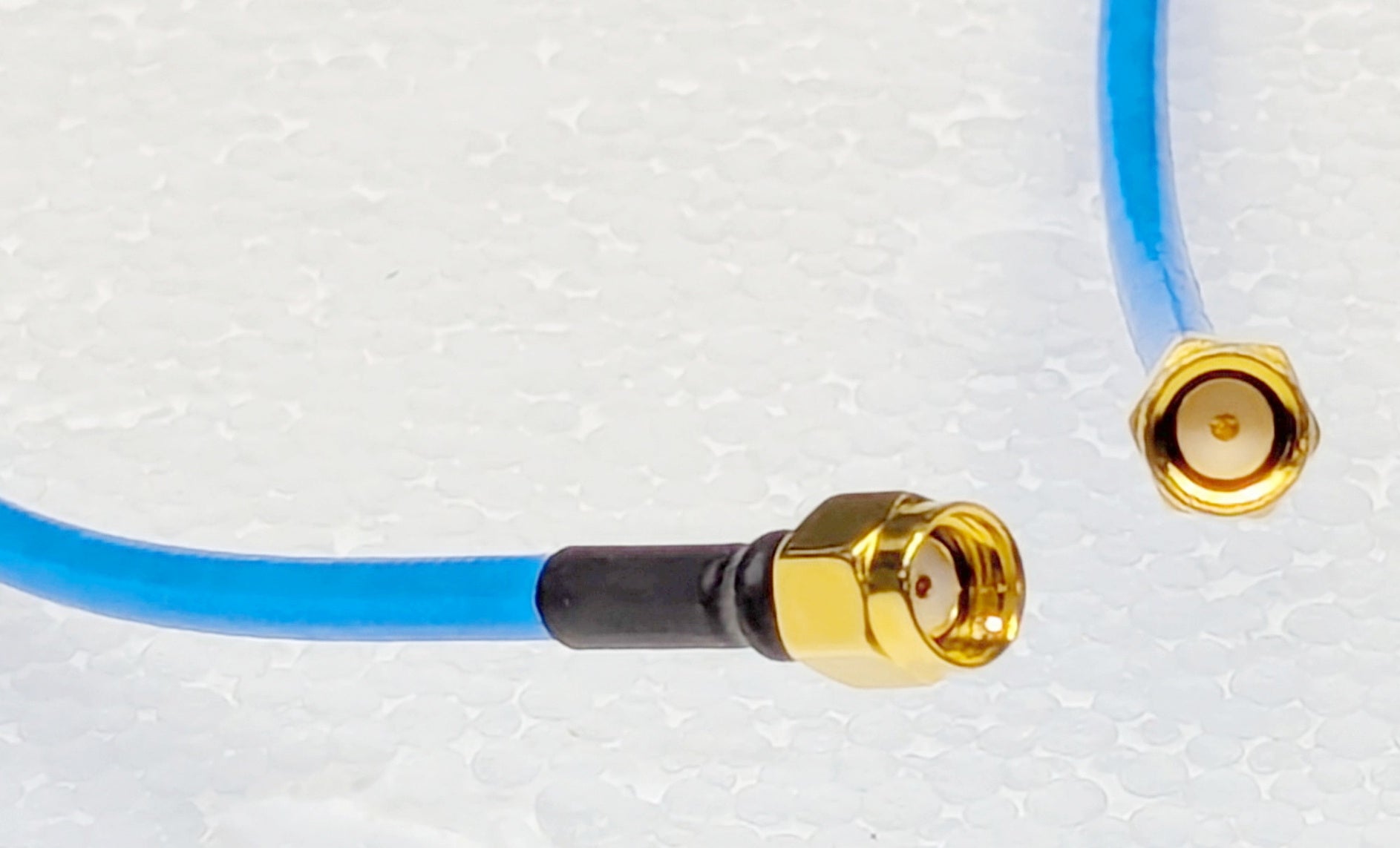

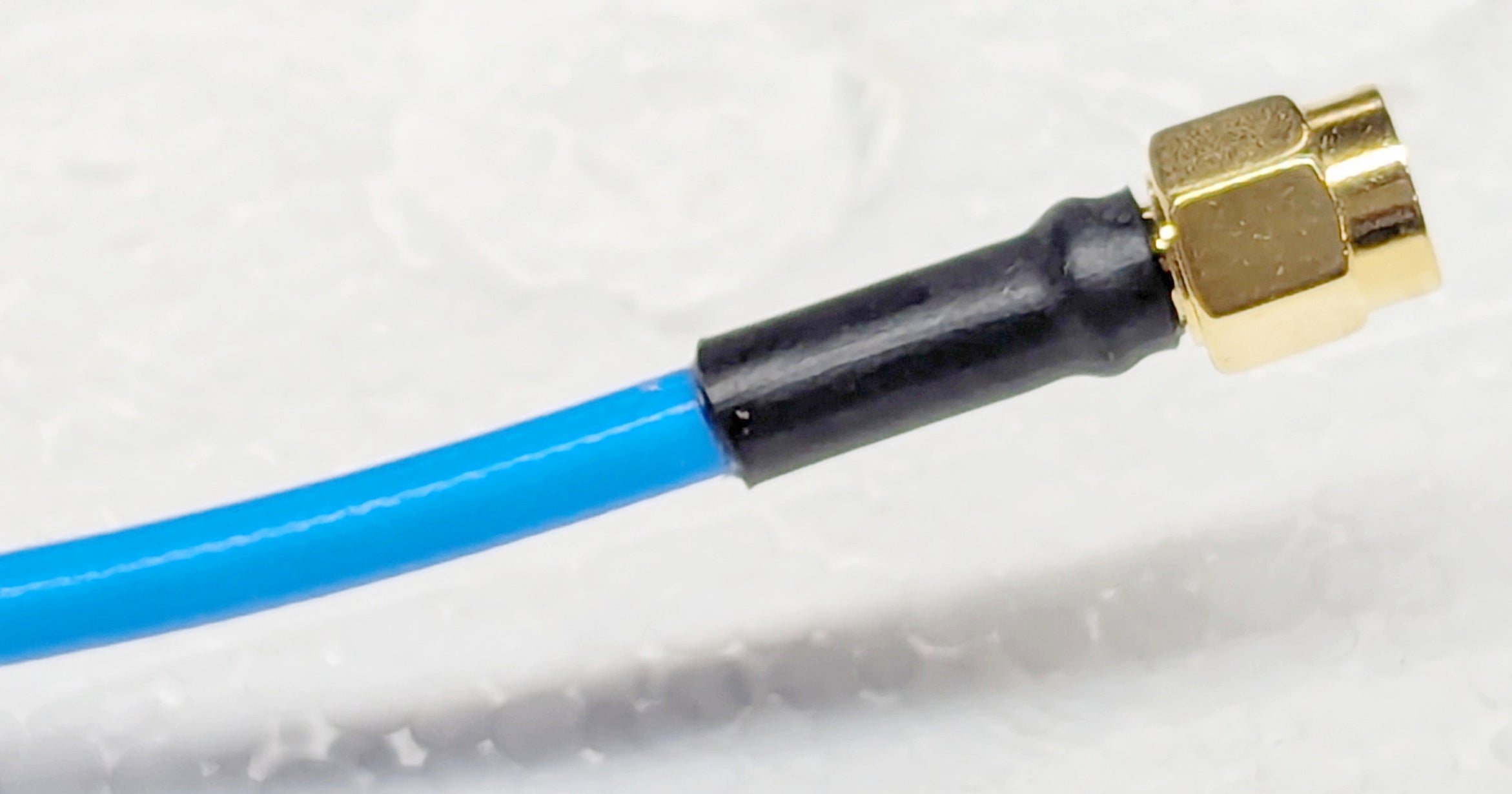

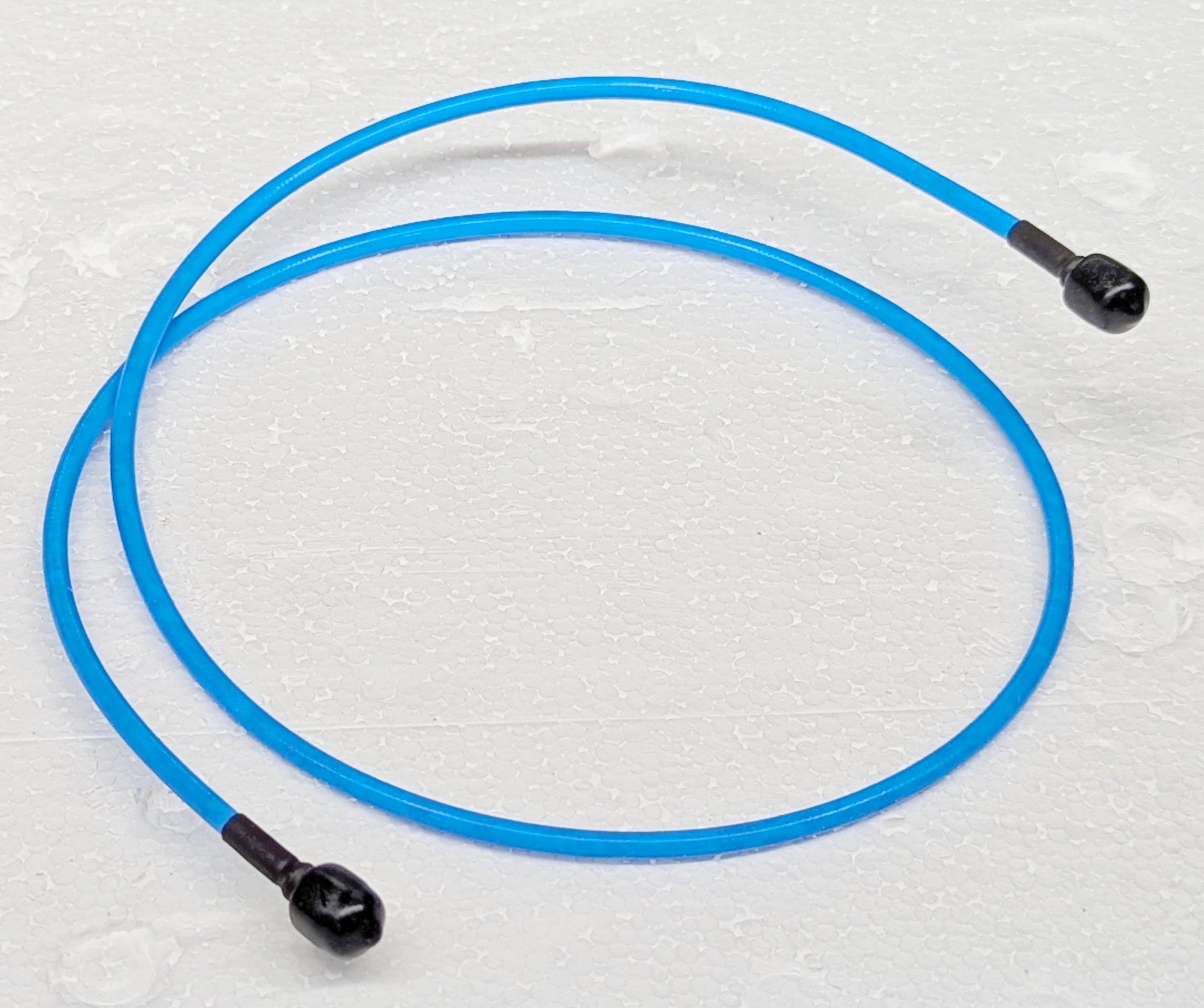

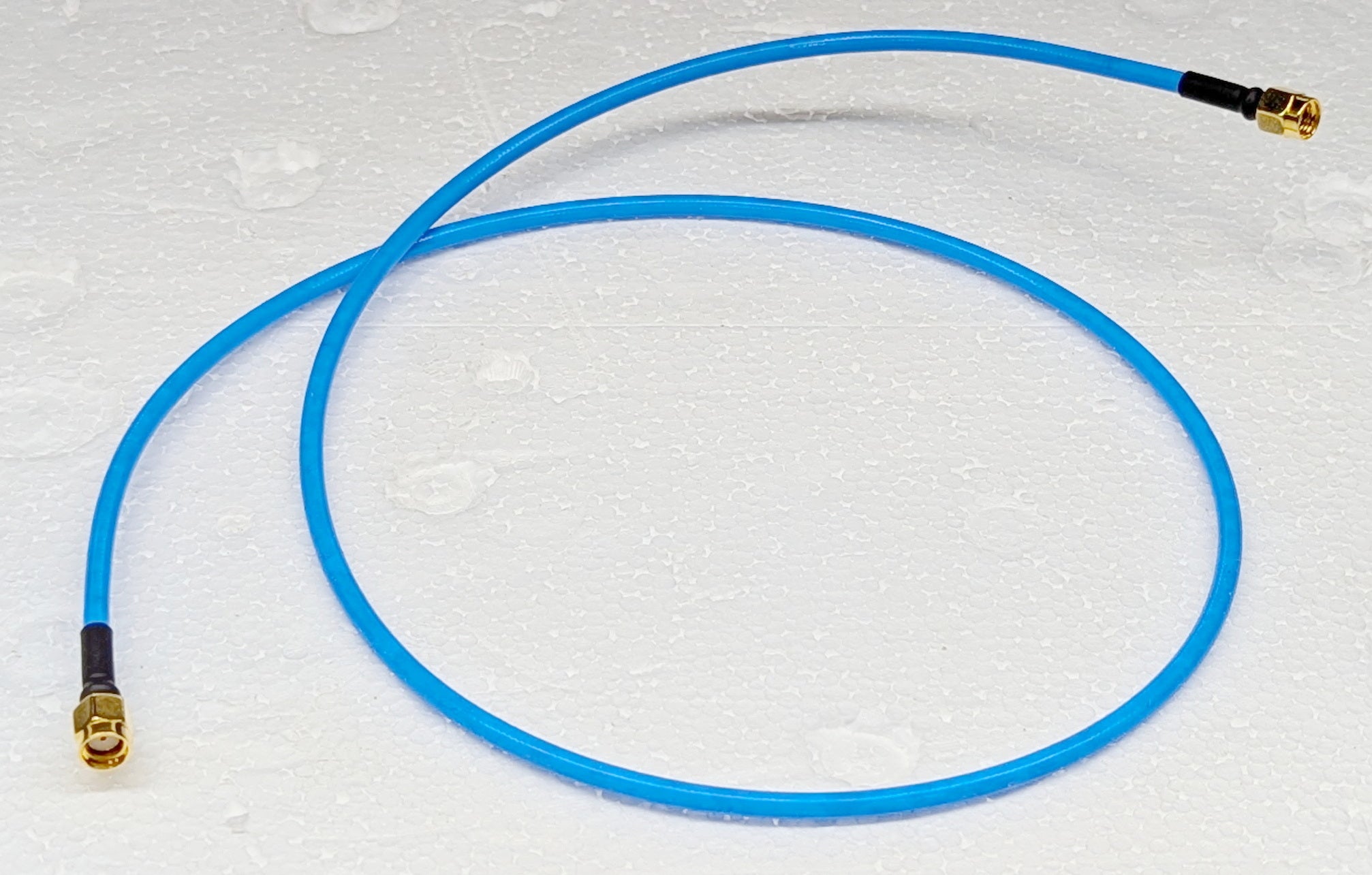

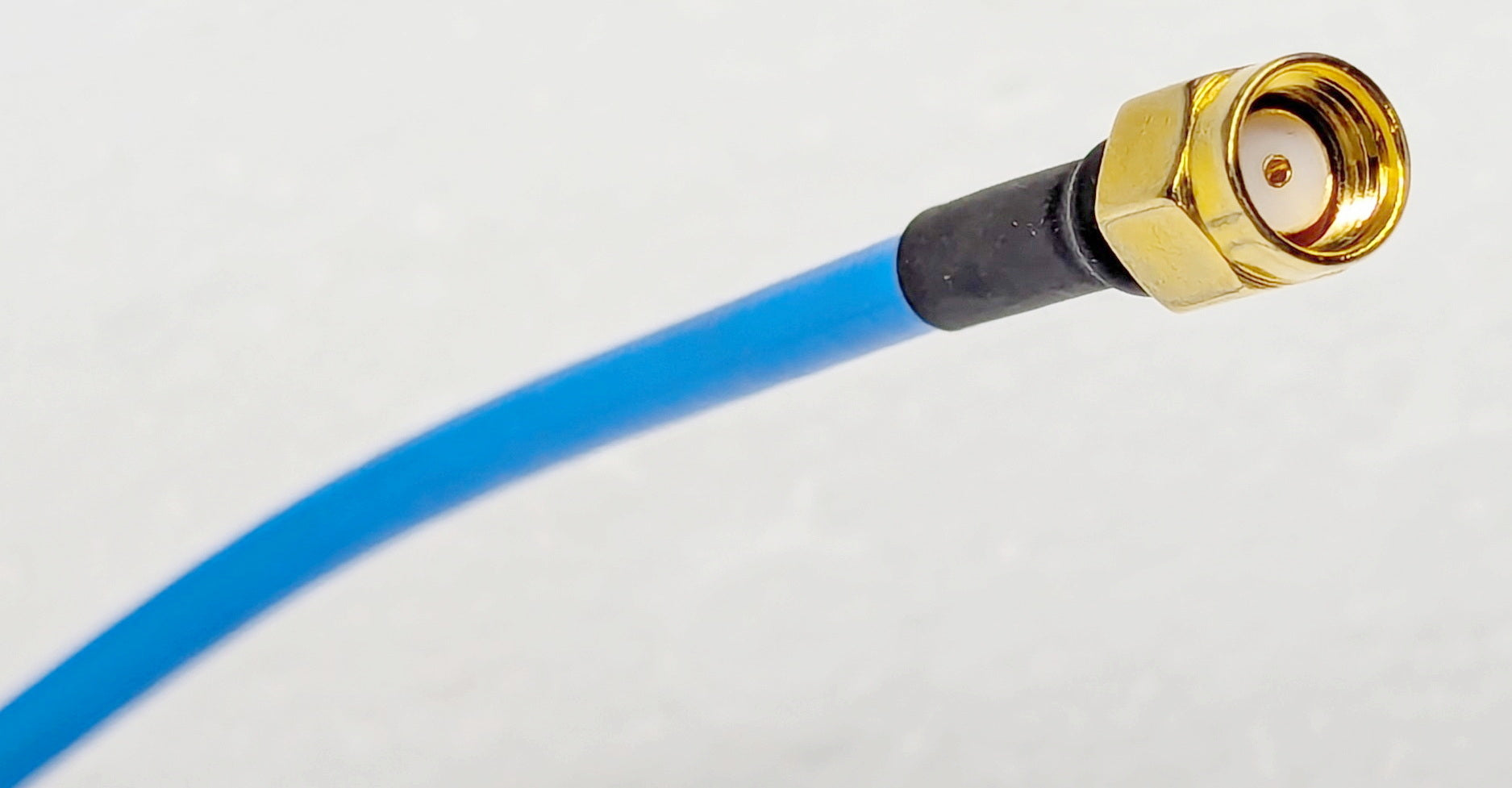

Cable SMA RP male SMA RP male 30 inch Extension RG-402 .141

Cable SMA RP male SMA RP male 30 inch Extension RG-402 .141


    Connection Cable. Connect two SMA female RP devices such as Wifi Cards, antennas, etc. SMA RP male RG-402 also known as .141 Flex Rigid Cable Blue Jacket. High precision microwave grade cable. 30" long. This adapter cable permits an easy flexible indoor connection to your indoor wifi device with SMA RP female to another one like it. For use as an extension this requires a double SMA RP female barrel adapter, available on eBay.

    This cable is made with high precision connectors for use in our 8GHz commercial and government antennas. AntennaWorld part number CBL-2SMRP-31-402

    Adapter SMA to SMA RP SMA Male Plug & Female Jack Connector RF Coaxial Terminals | eBay choose RPSMA Female to RP SMA Female


    $15.00 - $15.00
    $15.00
    $15.00 - $15.00
    $15.00
    $15.00

      Connection Cable. Connect two SMA female RP devices such as Wifi Cards, antennas, etc. SMA RP male RG-402 also known as .141 Flex Rigid Cable Blue Jacket. High precision microwave grade cable. 30" long. This adapter cable permits an easy flexible indoor connection to your indoor wifi device with SMA RP female to another one like it. For use as an extension this requires a double SMA RP female barrel adapter, available on eBay.

      This cable is made with high precision connectors for use in our 8GHz commercial and government antennas. AntennaWorld part number CBL-2SMRP-31-402

      Adapter SMA to SMA RP SMA Male Plug & Female Jack Connector RF Coaxial Terminals | eBay choose RPSMA Female to RP SMA Female


      Cable Details & Specs

      L-400 Cable Specs

      For long cable runs (anything above 20 ft), L-400 cable is the best choice. Has the best RF insulation compared to the other options.
      All our cables are made in the U.S.A. using precision machines and are guaranteed quality performance.

      Thickness

      Flexibility

      Internal Conductor

      Loss Per 20 ft

      Loss Per 40 ft

      Loss Per 60 ft

      Loss Per 100 ft

      0.4 inch

      Semi-Rigid

      Copper

      -1.6 dB

      -3 dB

      -4.5 dB

      -7.4 dB

      Specs

      Thickness

      0.4 inch

      Flexibility

      Semi-Rigid

      Internal Conductor

      Copper

      Loss Per 20 ft

      -1.6 dB

      Loss Per 40 ft

      -3 dB

      Loss Per 60 ft

      -4.5 dB

      Loss Per 100 ft

      -7.4 dB

      L-240 Cable Specs

      A very good cost-to-performance cable.
      For shorter cable runs that still demand performance, the L-240 cable is more flexible to manage and saves a few bucks.
      Maximum suggested cable run is 20 FT.

      Thickness

      Flexibility

      Internal Conductor

      Loss Per 10 ft

      Loss Per 20 ft

      0.2 inch

      Moderate

      Copper

      -1.5 dB

      -2.9 dB

      Specs

      Thickness

      0.2 inch

      Flexibility

      Moderate

      Internal Conductor

      Copper

      Loss Per 20 ft

      -1.5 dB

      Loss Per 40 ft

      -2.9 dB

      L-195 Cable Specs

      The best cable for short runs up to 10 ft.
      This cable is great for short pigtails, such as connecting an antenna to a thicker and longer cable run.
      This cable is the most flexible; however also the most lossy.

      Thickness

      Flexibility

      Internal Conductor

      Loss Per 3 ft

      Loss Per 10 ft

      0.2 inch

      High

      Copper

      -0.7 dB

      -2.1 dB

      Specs

      Thickness

      0.2 inch

      Flexibility

      High

      Internal Conductor

      Copper

      Loss Per 20 ft

      -0.7 dB

      Loss Per 40 ft

      -2.1 dB

      How to Choose The Right Cable

      It’s all about the cable run. Anything shorter than 10 ft, an L-195 is acceptable. Up to 20 ft, the L-240 is good. For anything above, 30 ft, the L-400 performs the best.

      dB loss & gain is measured exponentially. A +3 or -3 dB equals to either doubling the power or doubling the loss. In the specs above, the L-400 at 40 ft performs about the same as a L-240 at 20 ft which is 2x the length.
