Cable for WiFi & Cellular(L-195)

Cable for WiFi & Cellular(L-195)


    Coax & Ethernet Cables: Pre-Sized or Custom

    • In-house USA-made cables made by SimpleWiFi!
    • Works for WiFi, cellular, or any RF accessories  like antennas, adaptors, hotspots and more
    • Custom-length option available
      WiFi Cables & Cellular Cables: For Antennas, Accessories, and Devices Such as Hotspots & Signal Boosters.

      Coax and ethernet cables. Often overlooked, yet the most vital part of long-range networking link.

      Choose the right cable type with the right connector at the right length can significantly impact the performance of your connected system.

      Because RF (radio frequency) signal is passing from the radio (router, hotspot, USB adaptor, signal booster, etc.) to the antenna, it inevitable loses signal strength over cable run, especially for coax cables.

      This is called attenuation. To combat this issue:

      • 1

        Use the shortest cable run as possible.

      • 2

        The thicker the cable insulation, the better signal is maintained through your network.

      So which cables right for you? In general:

      1. Best:  L-400 Coax, CAT5E
      2. Better: L-240 Coax
      3. Good: L-195 Coax
      $12.00 - $19.00
      $12.00
      $12.00 - $19.00
      $12.00

      Cable Type

      Antenna

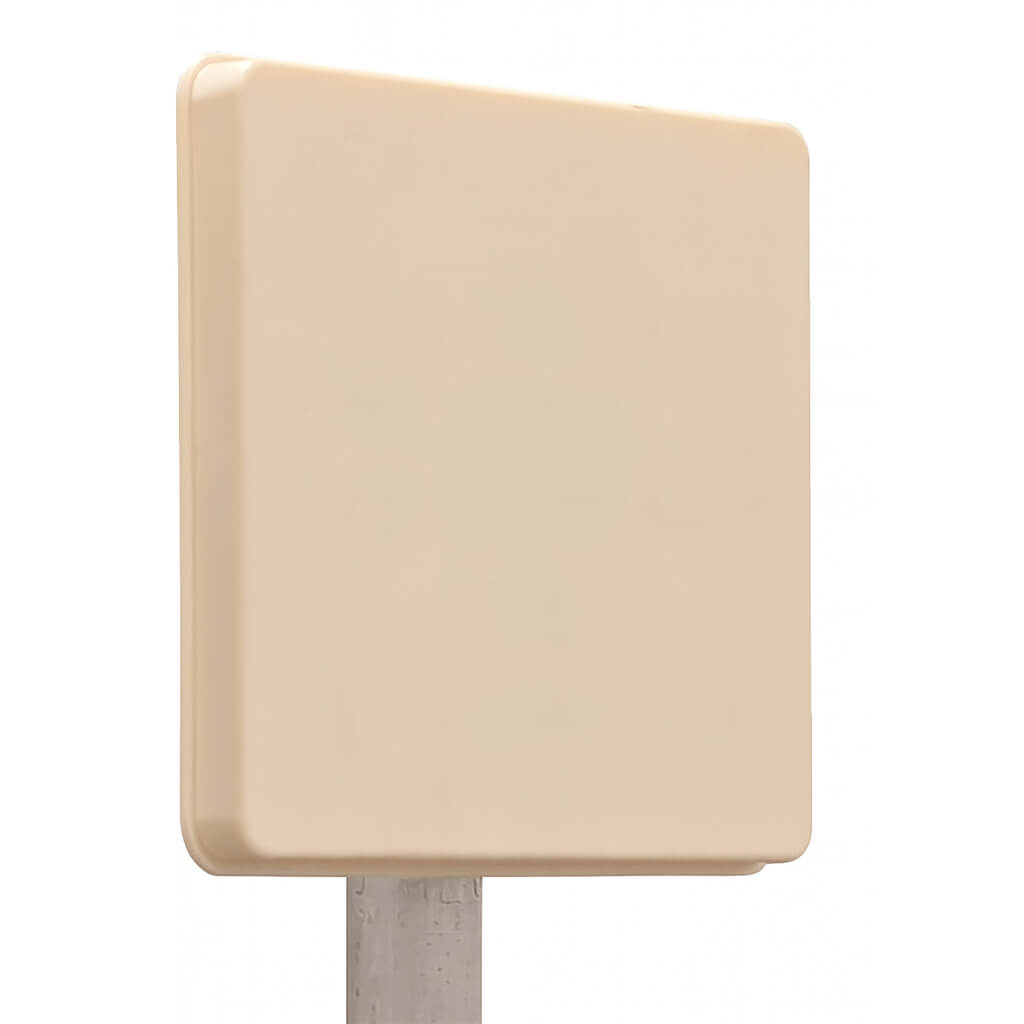

      Our outdoor directional 32 degree panel antenna points to an internet source. It’s optimized to reach far in the distance. However, any outdoor antenna (omni or yagi) can be used.

      Connectors: N-Male / SMA-RP Male
      Length: 3’
      $12.00


        Coax & Ethernet Cables: Pre-Sized or Custom

        • In-house USA-made cables made by SimpleWiFi!
        • Works for WiFi, cellular, or any RF accessories  like antennas, adaptors, hotspots and more
        • Custom-length option available
          WiFi Cables & Cellular Cables: For Antennas, Accessories, and Devices Such as Hotspots & Signal Boosters.

          Coax and ethernet cables. Often overlooked, yet the most vital part of long-range networking link.

          Choose the right cable type with the right connector at the right length can significantly impact the performance of your connected system.

          Because RF (radio frequency) signal is passing from the radio (router, hotspot, USB adaptor, signal booster, etc.) to the antenna, it inevitable loses signal strength over cable run, especially for coax cables.

          This is called attenuation. To combat this issue:

          • 1

            Use the shortest cable run as possible.

          • 2

            The thicker the cable insulation, the better signal is maintained through your network.

          So which cables right for you? In general:

          1. Best:  L-400 Coax, CAT5E
          2. Better: L-240 Coax
          3. Good: L-195 Coax

          Cable Details & Specs

          L-400 Cable Specs

          For long cable runs (anything above 20 ft), L-400 cable is the best choice. Has the best RF insulation compared to the other options.
          All our cables are made in the U.S.A. using precision machines and are guaranteed quality performance.

          Thickness

          Flexibility

          Internal Conductor

          Loss Per 20 ft

          Loss Per 40 ft

          Loss Per 60 ft

          Loss Per 100 ft

          0.4 inch

          Semi-Rigid

          Copper

          -1.6 dB

          -3 dB

          -4.5 dB

          -7.4 dB

          Specs

          Thickness

          0.4 inch

          Flexibility

          Semi-Rigid

          Internal Conductor

          Copper

          Loss Per 20 ft

          -1.6 dB

          Loss Per 40 ft

          -3 dB

          Loss Per 60 ft

          -4.5 dB

          Loss Per 100 ft

          -7.4 dB

          L-240 Cable Specs

          A very good cost-to-performance cable.
          For shorter cable runs that still demand performance, the L-240 cable is more flexible to manage and saves a few bucks.
          Maximum suggested cable run is 20 FT.

          Thickness

          Flexibility

          Internal Conductor

          Loss Per 10 ft

          Loss Per 20 ft

          0.2 inch

          Moderate

          Copper

          -1.5 dB

          -2.9 dB

          Specs

          Thickness

          0.2 inch

          Flexibility

          Moderate

          Internal Conductor

          Copper

          Loss Per 20 ft

          -1.5 dB

          Loss Per 40 ft

          -2.9 dB

          L-195 Cable Specs

          The best cable for short runs up to 10 ft.
          This cable is great for short pigtails, such as connecting an antenna to a thicker and longer cable run.
          This cable is the most flexible; however also the most lossy.

          Thickness

          Flexibility

          Internal Conductor

          Loss Per 3 ft

          Loss Per 10 ft

          0.2 inch

          High

          Copper

          -0.7 dB

          -2.1 dB

          Specs

          Thickness

          0.2 inch

          Flexibility

          High

          Internal Conductor

          Copper

          Loss Per 20 ft

          -0.7 dB

          Loss Per 40 ft

          -2.1 dB

          How to Choose The Right Cable

          It’s all about the cable run. Anything shorter than 10 ft, an L-195 is acceptable. Up to 20 ft, the L-240 is good. For anything above, 30 ft, the L-400 performs the best.

          dB loss & gain is measured exponentially. A +3 or -3 dB equals to either doubling the power or doubling the loss. In the specs above, the L-400 at 40 ft performs about the same as a L-240 at 20 ft which is 2x the length.
